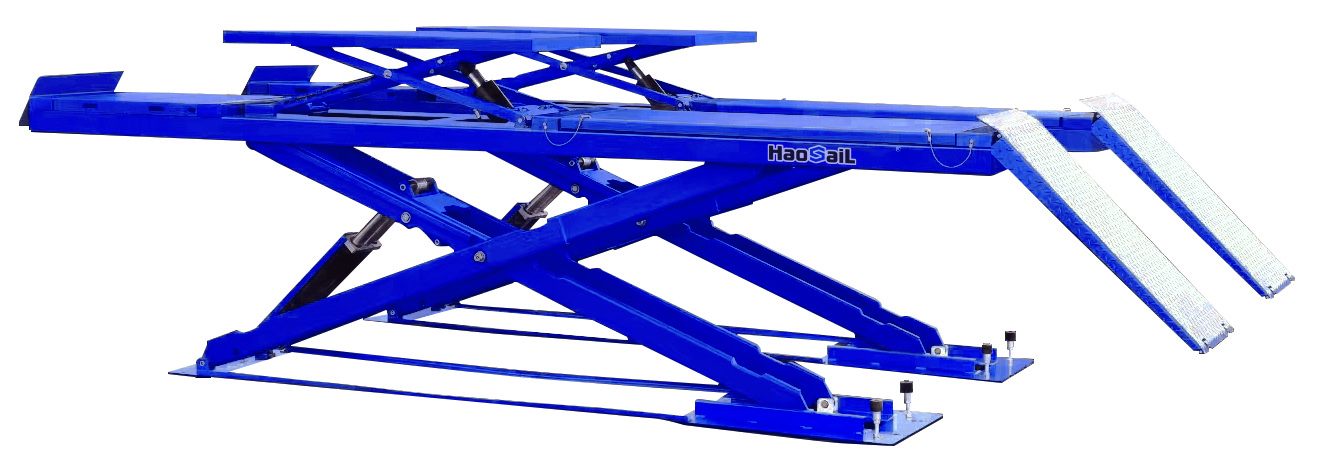

Haosail In-ground big scissor lift

The in ground big scissor lift, also known as a large scissor-type hydraulic car lift, is a specialized piece of equipment used for automotive repair and four-wheel alignment inspection. When customers come to inquire about the price of wheel alignment, we usually recommend them to buy a in ground scissor lift or a four-post lift as a matching set. At present,in ground big scissor lift are very popular in Africa. It has the following main functions and features:

1. **Lifting Capacity**: The in ground big scissor lift can lift a variety of vehicles weighing up to 4000kg, making it suitable for the maintenance and repair of multiple grades of cars.

2. **Structural Features**:The in ground big scissor lift features a concealed scissor structure that takes up minimal space, an independent control box, and low-voltage control, enhancing safety performance. The hydraulic volume synchronous cylinder ensures that the platform operates synchronously and smoothly. The embedded secondary lifting is highly adaptable, with an integrated platform and square tube arm supports.

3. **Safety Insurance**: Equipped with both hydraulic locks and mechanical double-tooth safety claws for dual safety insurance devices, which automatically disengage when descending, providing high safety performance. The pneumatic unlocking device reduces machine noise to the greatest extent possible.

4. **Overload Protection**: In ground big scissor lift has safety valve protection for both hydraulic failure and overload, increasing safety during use.

5. **Wear-Resistant Materials**: The use of maintenance-free, ultra-wear-resistant material sliding blocks reduces maintenance needs. The position of the swivel plate is equipped with large detents and is adjustable.

6. **Four-Wheel Alignment**: Particularly suitable for four-wheel alignment inspection because of its strong horizontal adjustment capability and precise, adjustable horizontal accuracy.

7. **Operating Principle**: The motor drives the gear pump to deliver hydraulic oil into the oil cylinder, pushing the piston rod to rotate the scissor arm, thereby lifting the working platform to complete the lifting work. The four-cylinder drive ensures that the oil cylinder passes a 100% pressure test.

8. **Pre-Operation Check**: Before use in ground big scissor lift, it is necessary to check for any obstacles around the machine, whether the platform movements are smooth and synchronized, and whether there are any oil leaks in the oil cylinder, oil pipes, and connections, to ensure safe use.

9. **Operation Procedure**: Includes correct vehicle parking, lifting, locking the platform safety claws, descending, and proper storage when not in use for an extended period, ensuring the correctness and safety of the operation.

10. **Safety Precautions**:The in ground big scissor lift is designed for vehicle lifting and maintenance work and is not suitable for lifting other types of loads, especially for washing, carrying people, or lifting bulk items.

In ground big scissor lift is an indispensable tool in the automotive repair industry due to its robust design, safety features, and adaptability to various vehicle types. It allows mechanics to work on vehicles efficiently and safely, with the confidence that the vehicle is securely positioned for maintenance or repair. The lift's synchronization and precision ensure that the vehicle remains level during the inspection process, which is critical for accurate four-wheel alignment services. Additionally, the in ground big scissor lift's safety features, such as the hydraulic lock and mechanical safety claws, provide an extra layer of protection against accidental drops or slips, safeguarding both the vehicle and the personnel working underneath. By reducing maintenance needs with its wear-resistant materials and providing a quiet operation with the pneumatic unlocking device, the lift contributes to a more productive and comfortable workshop environment.
